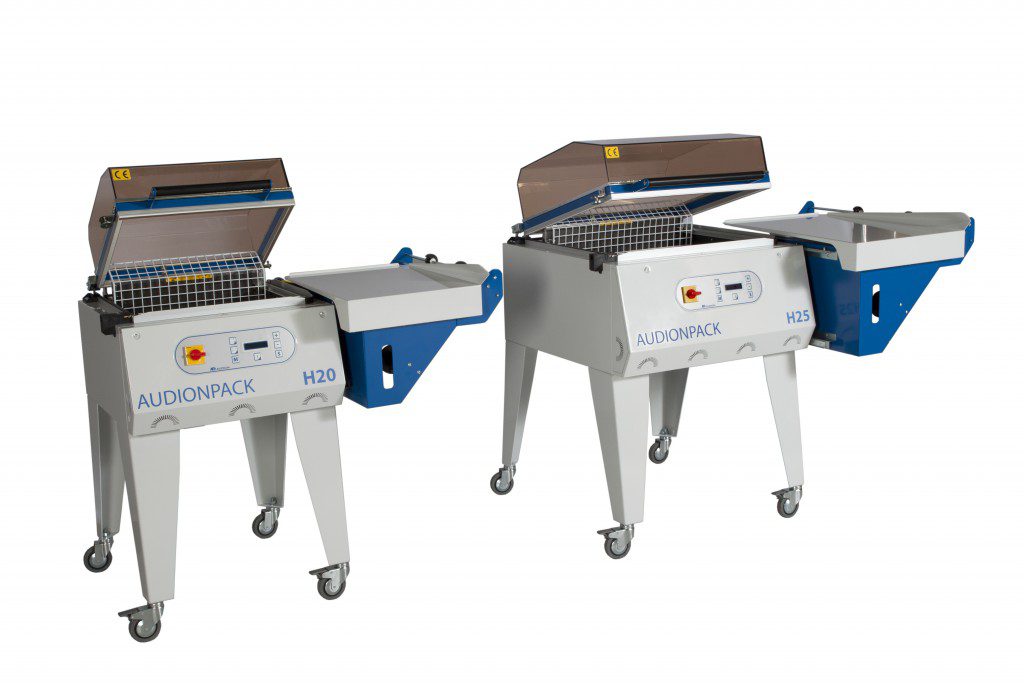

Audionpack Chamber Shrink Wrapping Machines
Supplied with 12 months warranty. Nationwide next delivery and installation available by our team of factory trained engineers. Full UK spares stock and comprehensive on site service back up.
| Model |
AP H20 |
AP H25 |
| Seal Area* |
440 x 300 mm |
560 x 430 mm |
| Max. Production Height* |
210mm |
260mm |
| Power Requirements |
Single Phase 13amp |
Single Phase 13amp |
| Overall Dimensions |
1050 x 682 x 1015 mm |
1240 x 815 x 1100 mm |
| Working Height (on stand) |
840mm |
840 mm |
Dibipack Chamber Shrink Wrapping Machines
Available with 12 months warranty. Nationwide delivery and installation also available Full spares and on site service back up. UK main Dibipack distributor for over 20 years
- Impulse seal/cut chamber machines which seal and shrink in one operation.
- For low to medium speed applications where space is at a premium and single operated use is required.
- Free standing machines with locking castors, gas spring head operation on 3246 and 4255 models.
- 6084 and 85130 models have torsion bar head operation.
- STX model with analogue controls, electro-magnetic clamping of sealing frame with automatic release on completion of seal cycle.
- EV models incorporate plc unit with 8 preset programs, automatic compensation of seal blade temperature, energy saving mode and automatic pack counter.
- Operating speed up to 8 packs per minute.
- For use with PVC and polyolefin films.
- Dibipack spares available from stock
| Dibipack Model |
3246STX / 3246EV |
4255STX / 4255EV |
6084EV |
85130 |
| Seal Area* |
320 x 460mm |
420 x 550mm |
600 x 840mm |
850 x 1300mm |
| Max. Production Height* |
220mm |
240mm |
240mm |
240mm |
| Power Requirements |
Single Phase 13amp |
Single Phase 13amp |
3Phase 16amp/Ph |
3Phase 16amp/Ph |
| Overall Dimensions |
1100x650x550 |
1250x750x620mm |
1850x950x1160mm |
2700x1500x1400mm |
| Working Height (on stand) |
945mm |
965mm |
920mm |
920mm |
